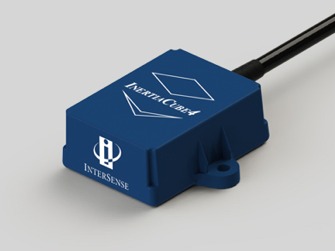

InertiaCube4
The InertiaCube4 offers superior performance over its predecessors while minimizing size and price. The sensor is ideal for real-time applications in simulation & training, virtual & augmented reality, motion capture, and human movement analysis.
The InertiaCube4 integrates the latest in MEMS inertial technology and utilizes advanced Kalman filtering algorithms to produce a full 360° sourceless orientation tracking sensor.
Features:
Sourceless 3DOF tracking with full 360° range
Accuracy of 1° yaw, 0.25° pitch & roll
200 Hz update rate
2000° maximum angular rate
Adjustable output filters and rotational sensitivity
In-situ and environmental Compass Calibration Tools for static magnetic field compensation
Native USB or RS232
Specifications:
| Degrees of Freedom: | 3 (Yaw, Pitch, and Roll) |
| Angular Range: | Full 360° - All Axes |
| Maximum Angular Rate: | 2000° per second |
| Minimum Angular Rate: | 0° per second |
| Accuracy (RMS): | 1° in yaw, 0.25° in pitch & roll at 25°C |
| Angular Resolution: | 0.01° RMS |
| Update Rate: | 200 Hz |
| Minimum Latency: | 2 ms for RS-232 (PC host OS dependent) |
| Prediction: | Up to 50 milliseconds |
| Serial Rate: | 115.2 kbaud |
| Size: | 1.44 in. x 1.09 in. x 0.55 in. (36.6 mm x 27.7 mm x 13.8 mm) |
| Weight: | 0.39 ounces (11 grams) |
| Cable Length: | 15 ft. (4.572 m) for RS-232 Version 6 ft. (2.0 m) for USB Version |
| Power: | 6 VDC, 40 mA |
| Operating Temp. Range: | 0° to 50° C |
| O/S Compatibility: | .dll for Windows 7/XP .so for Linux .dylib for Mac OS X |
| Compliance: | CE, UL, RoHS |
